How to monitor RedHat Enterprise Linux 5 or 6 using Microsoft System Center Operations Manager (SCOM) 2012 SP1 - Part 1

Modifications of the Linux OS and SCOM

It's really a mess to get a running configuration for SCOM and RHEL. There are serveral descriptions for more or less specific installations. The scope of this document is to provide a generic solution for a running configuration of RHEL 5 or 6 and SCOM 2012 SP1. Relax and enjoy!

  1. If you are unfamilar with the Linux Operating System please fetch a Linux guy first. He or she will be very helpful during the troubleshooting process!

  2. To fulfill the prerequisites on Linux I've provide a small and simple bash shell script which doing all the stuff. The script name is "prepare4scom" and I guess there are some improvements possible but now it does what it should. Here it is:
    #! /bin/bash

    # This script prepares a RHEL System to get ready for a Micrososft System Center Operations Manager (SCOM)
    # agent installation.

    # doing some prerequisites
    if (( $EUID != 0 )); then
        echo "You must be root to run this script!"
        exit 1
    fi

    DATE=$(date +%Y%m%d_%H%M)


    # Add user and set password
    echo "Adding user opsmgrsvc with uid 550"
    useradd -c "SCOM service account" -u 550 -m opsmgrsvc

    echo "Setting password for user opsmgrsvc"
    echo "please-enter-password-here" | passwd opsmgrsvc --stdin


    # Configure /etc/sudoers file
    echo "adding entries to /etc/sudoers"
    if [ -f /etc/sudoers ] ; then
      cp -p /etc/sudoers /etc/sudoers.$DATE
      cp -p /etc/sudoers /etc/sudoers_work
      sed -i '/^root.*ALL=(ALL) /a\opsmgrsvc ALL=(root) NOPASSWD: ALL' /etc/sudoers_work
      sed -i '/^Defaults.*requiretty/a\Defaults:opsmgrsvc !requiretty' /etc/sudoers_work
      echo "performing a visudo check"
      visudo -c -f /etc/sudoers_work 2>&1 >/dev/null
      RC=$?
      if [ ${RC} -ne 0 ] ; then
        echo "There is a problem in accessing/editing /etc/sudoers_work!"
        exit 2
      fi
      mv -f /etc/sudoers_work /etc/sudoers
    else
      echo "No /etc/sudoers file found!"
    fi

    echo "all done. Exiting"
    echo ""
    echo "#########################################################################"
    echo "Please add the appropriate user (opsmgrsvc) to /etc/ssh/sshd_config file"
    echo "if the directive AllowUsers is used and restart the ssh daemon!!"
    echo "#########################################################################"

    exit


  3. Save the script to the system which should be monitored and change the ownership and execute permisions:
    chown root:root prepare4scom
    chmod 750 prepare4scom


  4. Now execute this script as user "root":
    ./prepare4scom

    After (successful) execution of this script delete it immediately, because the password is coded into the script itself!

  5. Now we've done the whole Linux part for configuration the Linux OS!

  6. I assume that there is a ready to run SCOM 2012 installation. First we have to create a cross-platform resource pool for monitoring UNIX and Linux systems:

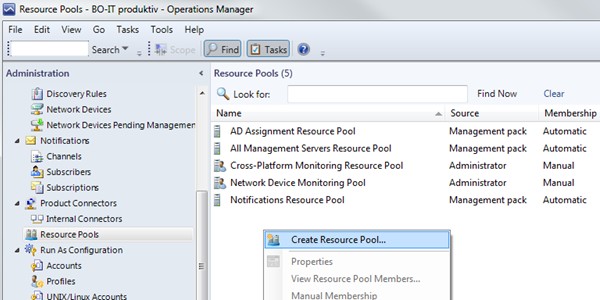

    Create cross-platform resource pool step 1

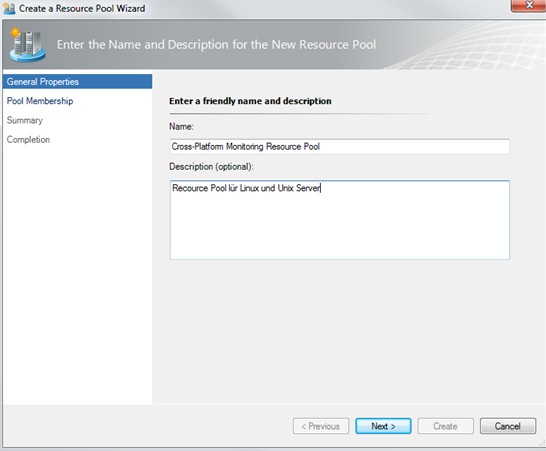

  7. Give the resource pool a meaningfull name:
    Create cross-platform resource pool step 2
    We choose "Resource pool for Linux and UNIX server".

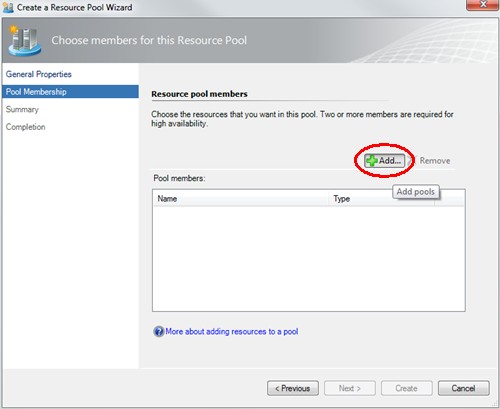

  8. Assign the management server to the resource pool:
    Create cross-platform resource pool step 3
    Just click "Add".

  9. Choose the management server:

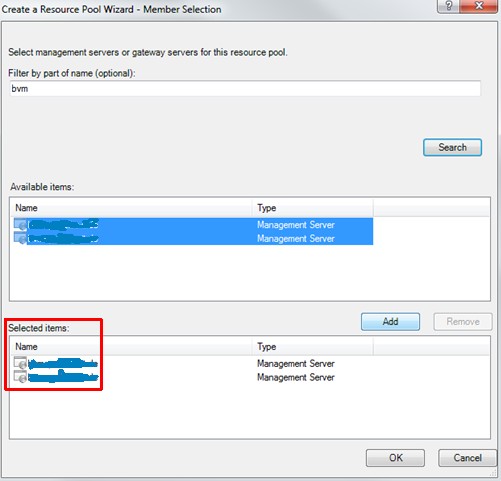

    Create cross-platform resource pool step 4
    In our environment there are two managmenet server, you may have just one or more. Don't forget to click OK!

  10. Click Next:

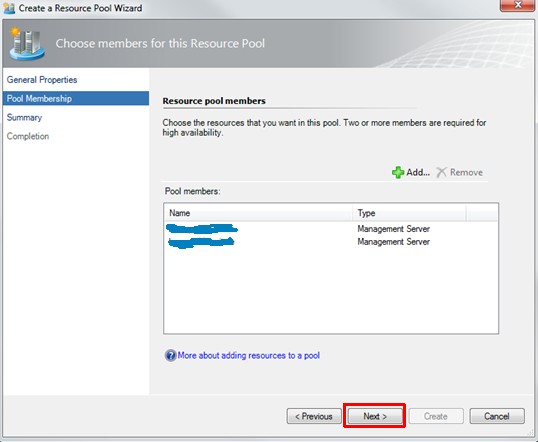

    Create cross-platform resource pool step 5

  11. Create the resource pool:

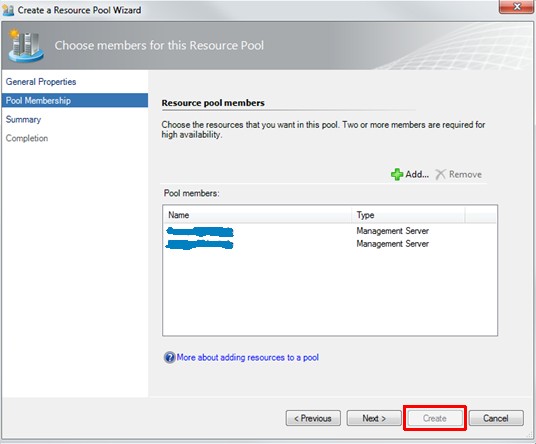

    Create cross-platform resource pool step 6
    Just click on Create to build the resource pool!

  12. Now we've done the resource pool creation part!

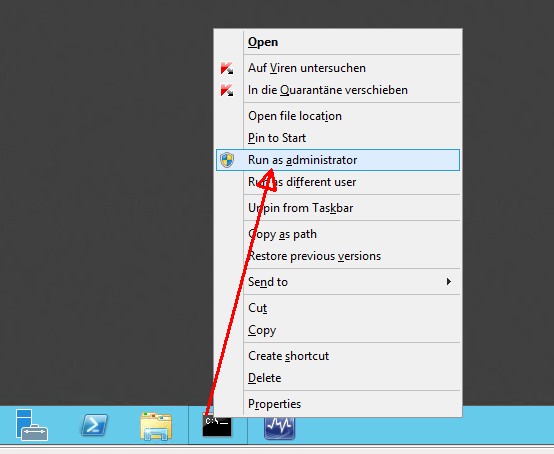

  13. Because we have more than one management server as members of a cross-platform resource pool, we have to copy the server certificates to each member of the resource pool. Doing this we must start the command.com as an aministrator (click right on icon):
    spread certs in resourcepool step 1

  14. Go to the appropriate directory:

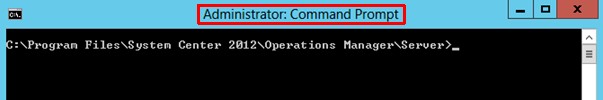

    spread certs in resourcepool step 2
    cd "%Program Files%\System Center 2012\Operations Manager\Server"


  15. Export certificate on each management server:
    spread certs in resourcepool step 3
    scxcertconfig.exe -export <local-hostname>.cert


  16. Import only the foreign certificates on each management server:
    The certificates has to be placed on each management server in to the directory "%Program Files%\System Center 2012\Operations Manager\Server" and then import them to the local cert store. spread certs in resourcepool step 4
    cd "%ProgramFiles%\System Center 2012\Operations Manager\Server"
    scxcertconfig.exe -import <local-hostname>.cert


  17. Now we've done the spread certificates part!

  18. Next we have to download the current Monitoring Pack for UNIX and Linux from the following website:
    http://www.microsoft.com/en-us/download/details.aspx?id=29696

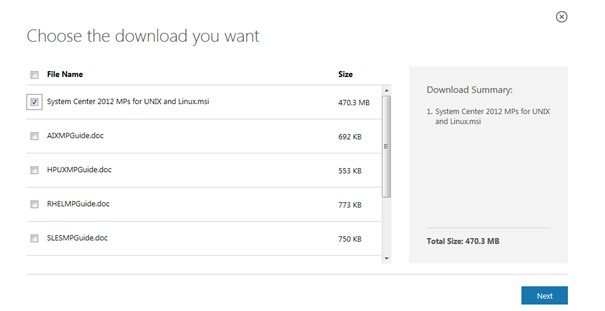

    You will be asked to choose the download and we want to have the "System Center 2012 MPs for UNIX and Linux.msi" package. Feel free to download more files, but these are not necessarry for our installation.
    MPs to download from MS website

  19. Next step is to execute the msi file. As a result we get a whole bunch of fresh management packs:

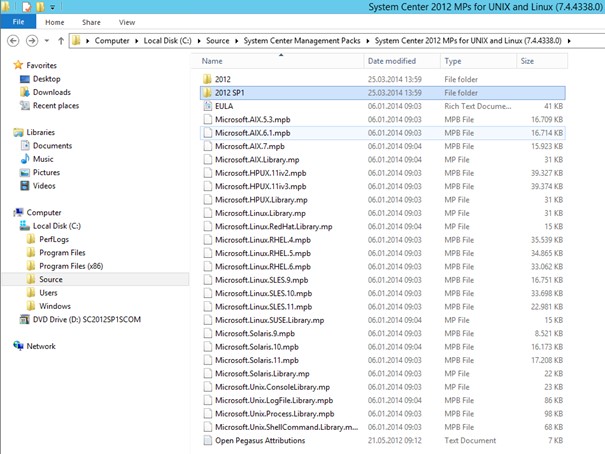

    List of all MPs in the msi file

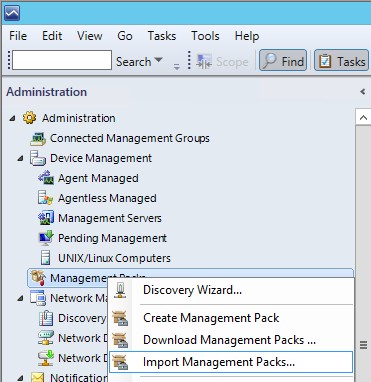

  20. Now we are ready to import the wanted management packs using the SCOM console:
    Import MP step 1

  21. Add from disk:

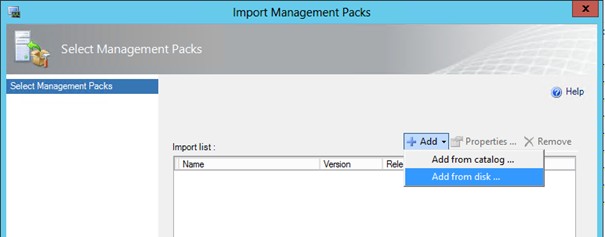

    Import MP step 2 - add from disk

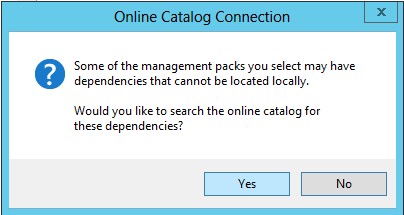

  22. Resolve dependencies (click Yes):
    Import MP step 3 - resolve dependencies

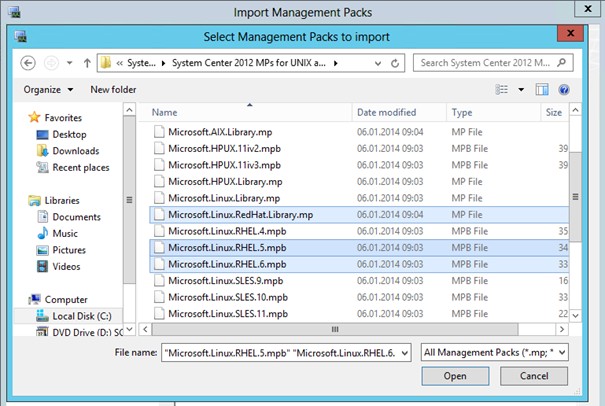

  23. Select MPs to import:
    Import MP step 4 - select to import

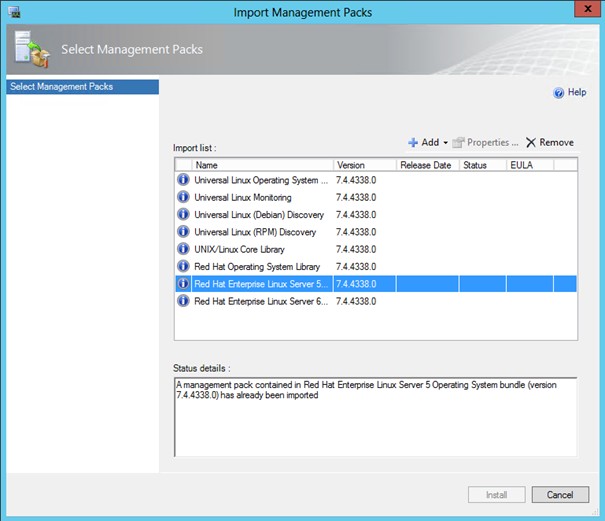

  24. Installation of selected MPs:
    Because this is not a really fresh installation we see the blue icons and the gey (inactive) Install button. If you have truely a fresh installation of the MPs, the icons are green and you are able to choose the Install button!
    Import MP step 5 - installation

  25. Now we've done the whole management pack installation part!

  26. Creation of two UNIX/Linux Run As accounts
    Now we have to create two SCOM Run As accounts. We follow the documentation: Microsoft System Center Operations Manager - "Red Hat Enterprise Linux Server Management Pack Guide for System Center 2012 - Operations Manager" (RHELMPGuide.doc). Both accounts are mapped to the single local Linux account which we have created in step 4. by executing the bash shell script.

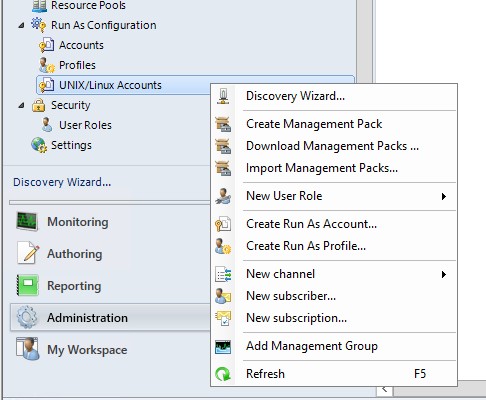

    1. First we create a non-elevated Run As account:
      non-elevated account step 1

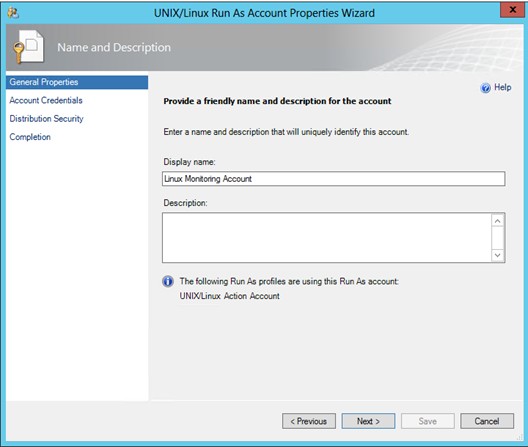

      • Give the account a meaningfull display name
        non-elevated account step 2
        We choose "Linux Monitoring Account".

      • Insert the account credentials

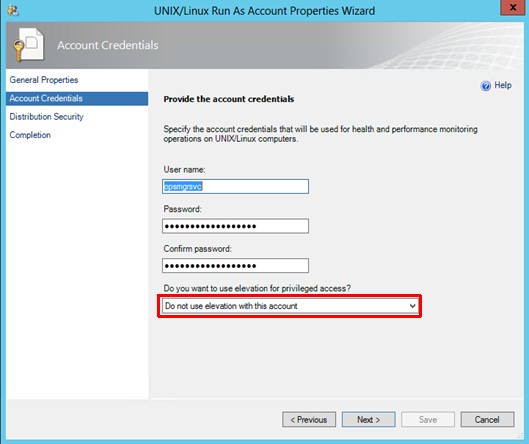

        non-elevated account step 3
        The credentials are the same as in step 4.! Please select "Do not use elevation with this account".

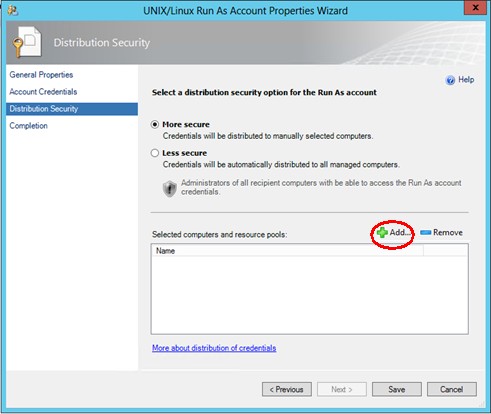

      • Choose distribution security option
        non-elevated account step 4
        Select "More secure" and click on add to choose a resource pool.

      • Add the resource pool

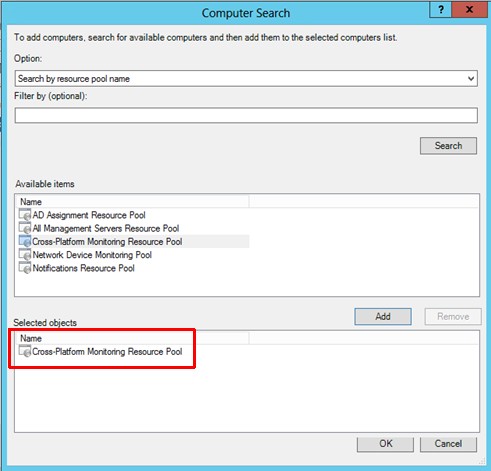

        non-elevated account step 5
        Now we add the resource pool "Cross-Platform Monitoring Resource Pool" which we have created in step 11). Don't forget to click OK!

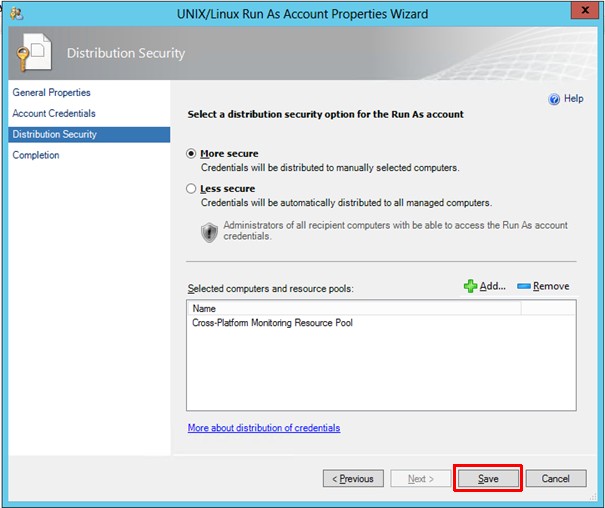

      • Save the settings for the first Run As account
        non-elevated account step 6
        To set up the first account just click "Save".

    2. As the second step we create the elevated Run As account:
      elevated account step 1

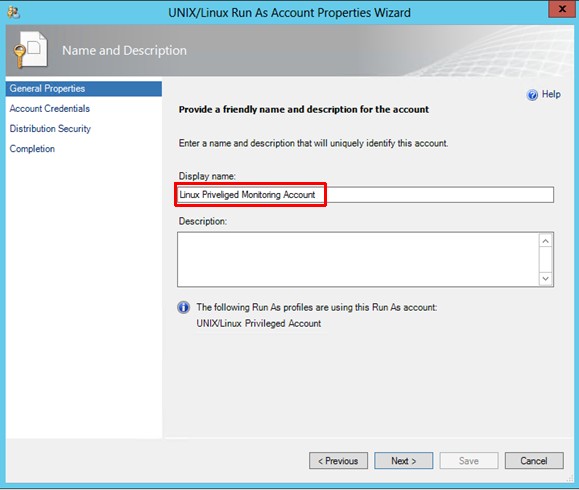

      • Give the account a meaningfull priveliged display name
        elevated account step 2
        We choose "Linux Privileged Monitoring Account".

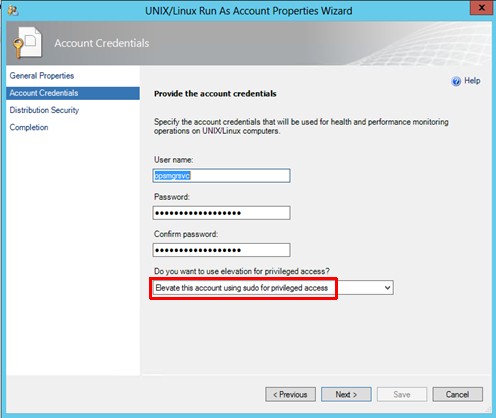

      • Insert the account credentials
        elevated account step 3
        The credentials are the same as in step 4.! Please select "Elevate this account using sudo for privileged access".

      • Choose distribution security option
        elevated account step 4
        Select "More secure" and click on add to choose a resource pool.

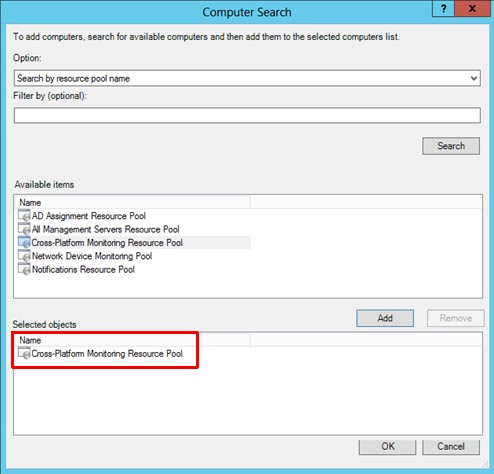

      • Add the resource pool
        elevated account step 5
        Now we add the resource pool "Cross-Platform Monitoring Resource Pool" which we have created in step 11). Don't forget to click OK!

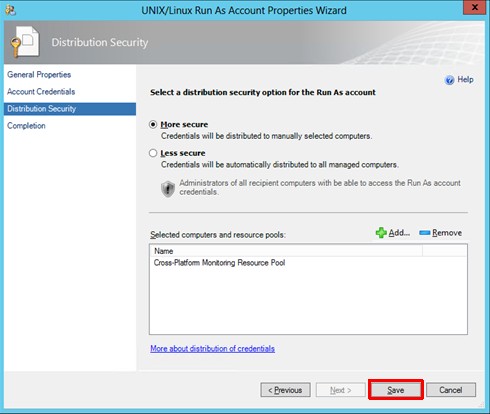

      • Save the settings for the second Run As account
        elevated account step 6
        To set up the second account just click "Save".


  27. You can download this page as pdf file [648 kB].

    On the next page I will show the SCOM-agent deployment for RedHat Enterprise Linux.
